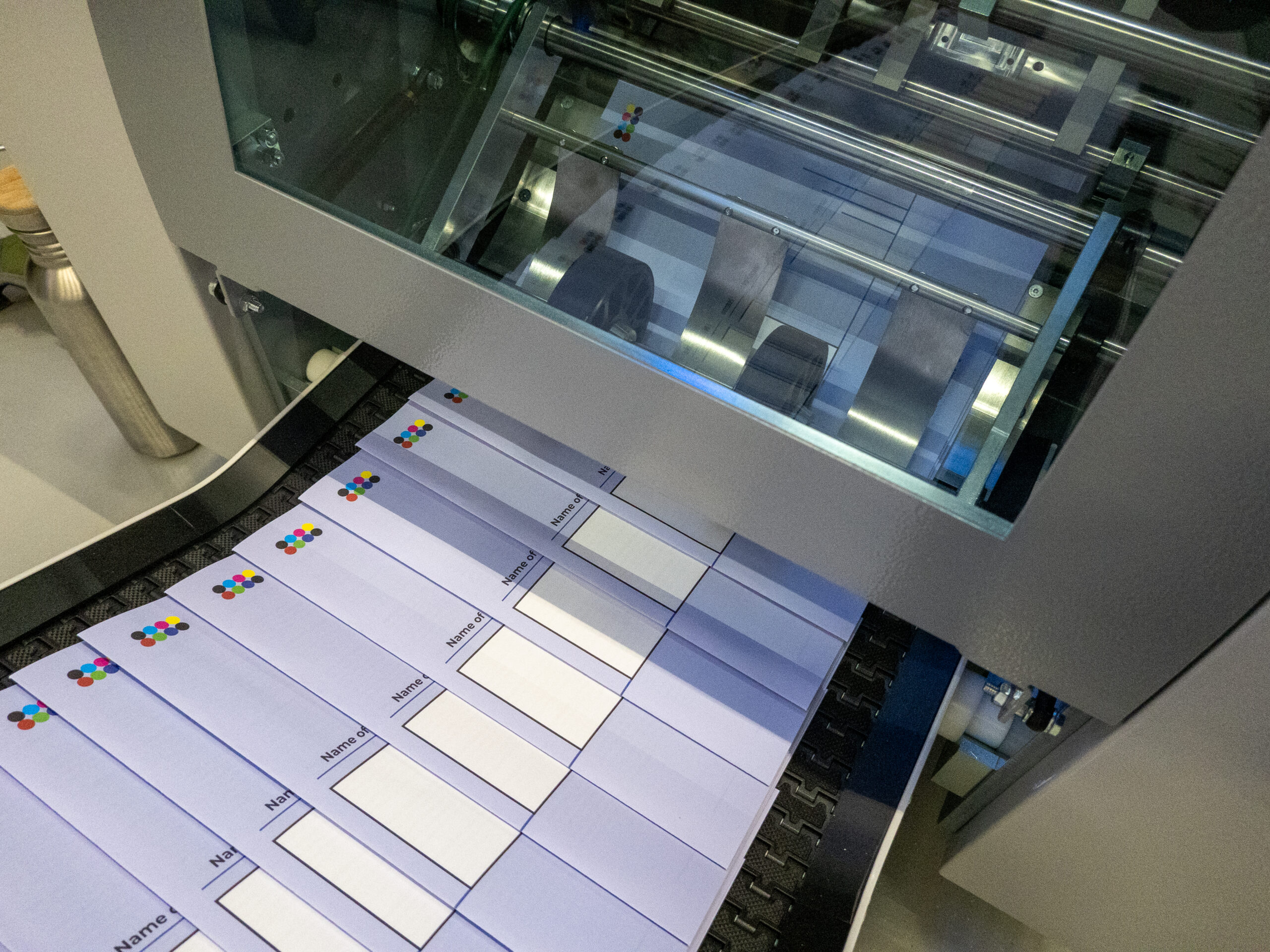

Inline finishing is a production configuration industrial-scale printing in which printed material moves directly from the press into finishing equipment without being removed from the production line. In roll-fed digital inkjet environments, this means the system begins with a blank roll and ends in either a a fully completed product like a book, labelled bottle, or food package or a printed roll ready for shipped directly to the client.
How Does Inline Finishing Affect Production?
Inline finishing reduces handling steps by allowing printed output to pass directly into downstream converting processes such as cutting, folding, stitching, or stacking. In continuous, roll-to-roll printing workflows, because the printed material can directly move between each process without loading and unloading by the operator, production speed is primarily affected by operational efficiency and equipment capability.
This continuous movement improves production stability in several ways. Firstly, the substrate remains under controlled tension throughout processing, which limits exposure to humidity, temperature fluctuations, or static build-up that may affect registration accuracy or finishing consistency. Fewer manual touchpoints also reduce the likelihood of physical damage to printed material and minimise opportunities for handling errors that introduce waste or rework. And finally, it facilitates a non-stop production workflow where multiple jobs can be set up and queued together to minimise labour requirements and expand overall production speeds.
When considering the overall workflow throughput, inline finishing lowers total completion time by allowing finished products to exit the line immediately after printing. Production tracking may also be implemented at the individual piece level during inline processing, which becomes particularly valuable in applications requiring verifiable delivery such as transactional mail or secure documentation.
However, inline finishing introduces operational dependencies between the printing and converting stage of productions. If finishing equipment requires job changeover or adjustment, the press may need to pause until the downstream line is prepared. In these configurations, a fault in one part of the system can halt the entire production chain, which may reduce effective press utilisation for short-run or frequently changing work.
When is Offline Finishing More Economical?
Offline finishing separates the printing and converting processes into distinct operational stages. In roll-fed inkjet environments, presses often operate in a roll-to-roll configuration when paired with offline finishing systems. This allows the press to run at its maximum rated throughput without being constrained by downstream processing speed or setup time.
In many production environments, the digital press represents the largest capital investment in the workflow. Maintaining uninterrupted press operation therefore becomes a primary economic objective. Continuous feed inkjet systems achieve their highest efficiency when running steadily rather than starting and stopping in response to finishing delays.
How Do Production Workflows Influence Finishing Strategy?
The decision between inline and offline finishing depends largely on job complexity, product variation, and delivery requirements. Long runs of uniform work may benefit from inline finishing because minimal changeover is required between jobs. In contrast, varied work involving different substrates, formats, or folding schemes may introduce makeready delays that reduce the efficiency of a connected inline system.
Modern production environments increasingly rely on integrated printing workflow management software like SCREEN EQUIOS to not only operate printing equipment, but facillitate communication between the press and finishing equipment regardless of physical proximity. When presses are integrated directly inline, downstream systems can be setup to autonomously communicate data bi-directional to support a single continuous workflow. Alternatively, workflow management can configure the press to print machine-readable barcodes or production metadata applied during printing allow offline finishing equipment to scan and configure the job parameters automatically, facilitating processing with minimal manual setup despite the technology not being in direct communication.
This approach allows facilities to balance uninterrupted printing with flexible finishing capability. In transactional, direct mail, or pharmaceutical printing environments where zero-defect delivery is required to maintain regulatory compliance and client satisfaction, inline finishing may reduce handling risk, while commercial applications involving stitched booklets, catalogues, or folded promotional materials, offline finishing may provide greater adaptability to changing job specifications.
How Do Industrial Inkjet Platforms Support Finishing Flexibility?
Production inkjet systems such as the Truepress JET series from SCREEN are typically designed to operate within both inline and near-line finishing environments. These roll-fed platforms can produce transactional documents, direct mailing, or personalised commercial printing materials that enter downstream converting processes immediately or are stored for later finishing depending on production requirements.
When inkjet printing equipment can maintain consistent substrate transport and accurate droplet placement at line speeds exceeding 150 metres per minute, continuous inkjet platforms allow printers with a diverse portfolio of applications and clients to select the optimal finishing strategies or even incorporate both or select elements of either based on workflow economics or even individual job parameters rather than mechanical limitations.
